Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2M1ACQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
1,644 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HF1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V CIT Relay and Switch |
2,929 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ12VDC1.9RRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
4,711 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ACQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
1,769 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V CIT Relay and Switch |
1,713 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HM1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
1,561 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
4,786 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
2,249 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ACQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
3,889 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

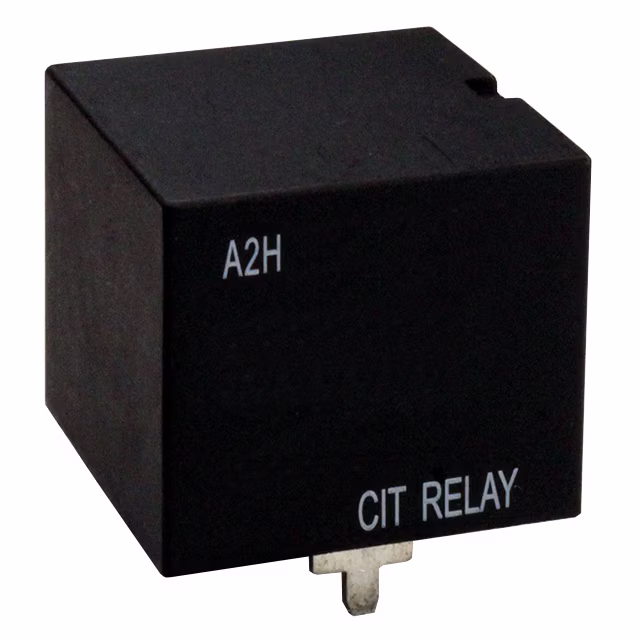

A2H1ASP12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V CIT Relay and Switch |
1,824 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
