Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

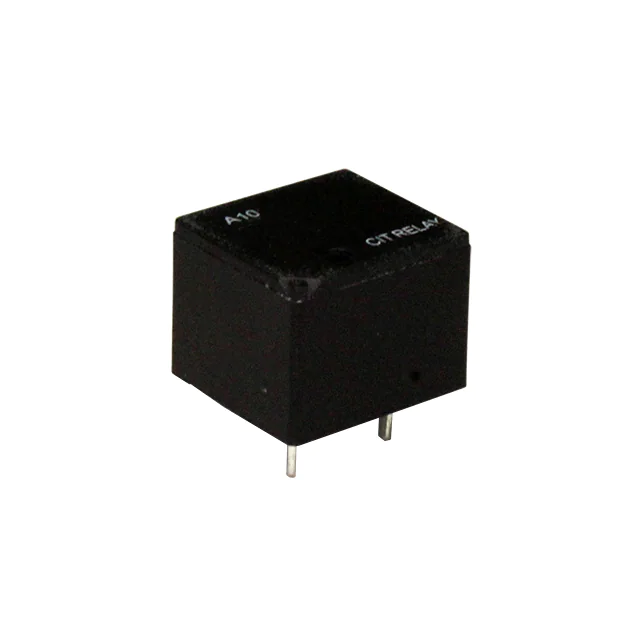

A101CS12VDCRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
1,790 |
|
Datasheet |
A10 | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | 30 A | 28VDC - Max | 8.4 VDC | 1.2 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
A101AS12VDCRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
782 |
|
Datasheet |
A10 | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 28VDC - Max | 8.4 VDC | 1.2 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|

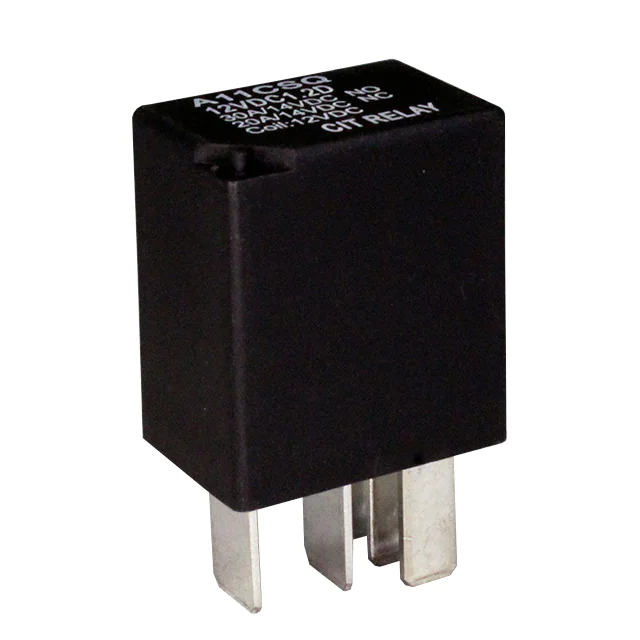

A11CSQ12VDC1.2DRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
2,652 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
|
A101CS24VDCRELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
537 |
|
Datasheet |
A10 | Tube | Active | Non Latching | 20.8 mA | 24VDC | SPDT (1 Form C) | 30 A | 28VDC - Max | 16.8 VDC | 2.4 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|

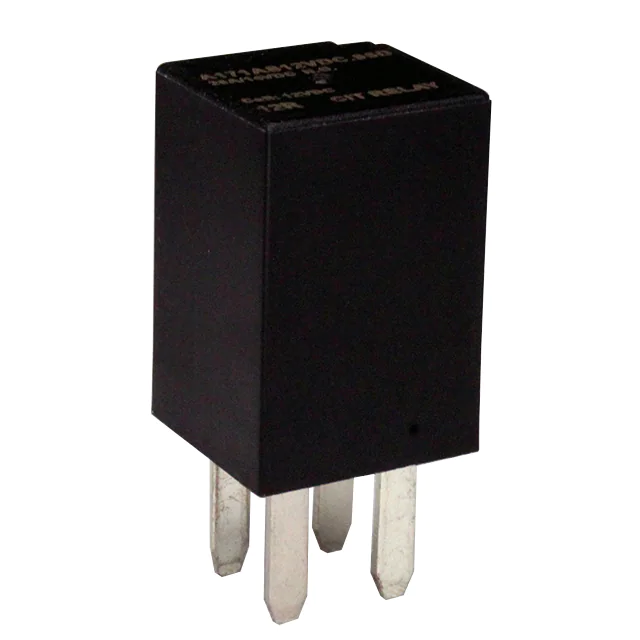

A171AS12VDC.96RRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
4,354 |
|
Datasheet |
A17 | Tray | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

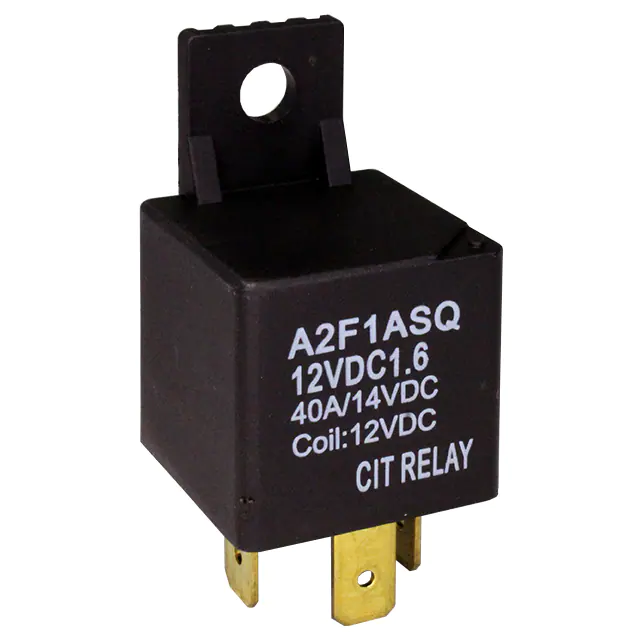

A2F1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
1,752 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
366 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

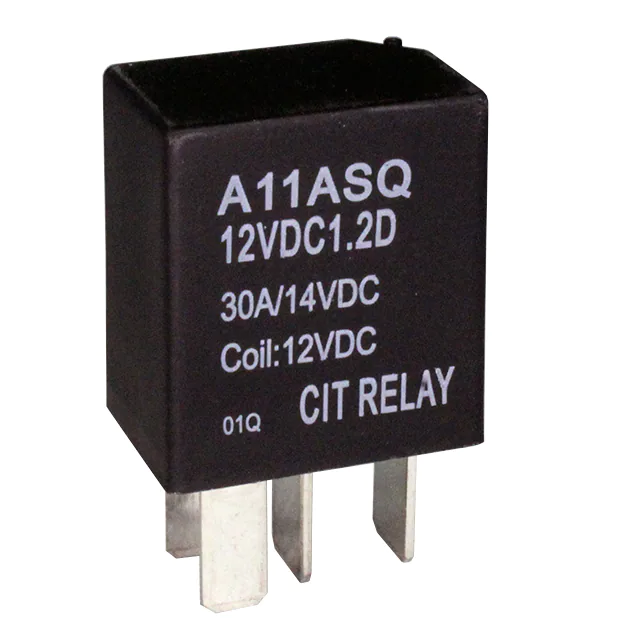

A11ASQ12VDC1.2DRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
1,094 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A21ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
1,512 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
563 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
