Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BU510TDTime Delay Relay delay to ON |
494 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | Socketable | Quick Connect - 0.250" (6.3mm) | - |
|

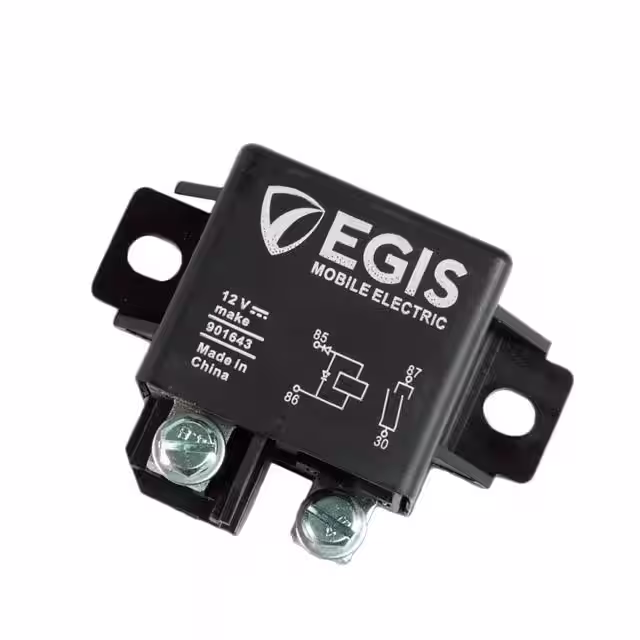

901643RELAY 12V 75 AMP DUAL DIODE |
969 |
|
Datasheet |
901643 | Bulk | Active | Non Latching | 260.9 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 13.5VDC - Nom | 8.8 VDC | 1.5 VDC | 7 ms | 2 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
901488RELAY 12V 75 AMP |
792 |
|
Datasheet |
901488 | Bulk | Active | Non Latching | 260.9 mA | 12VDC | SPST-NO (1 Form A) | 75 A | 13.5VDC - Nom | 8.8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

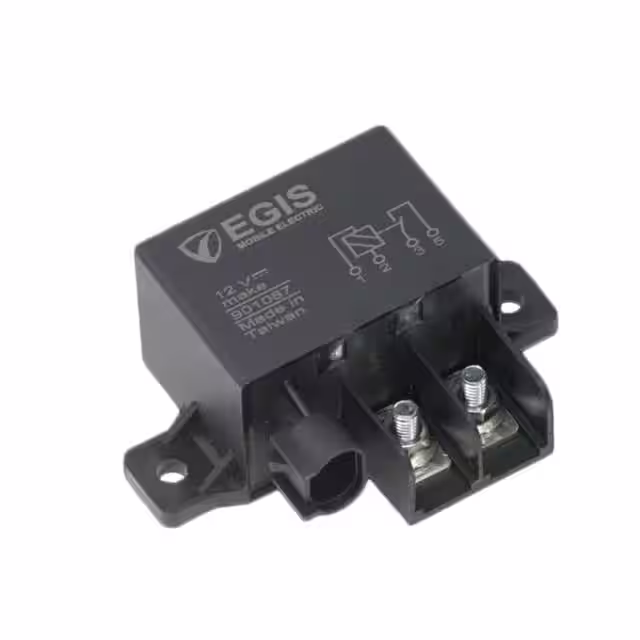

901087RELAY 12V |
200 |
|
Datasheet |
901087 | Bulk | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 300 A | 13.5VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

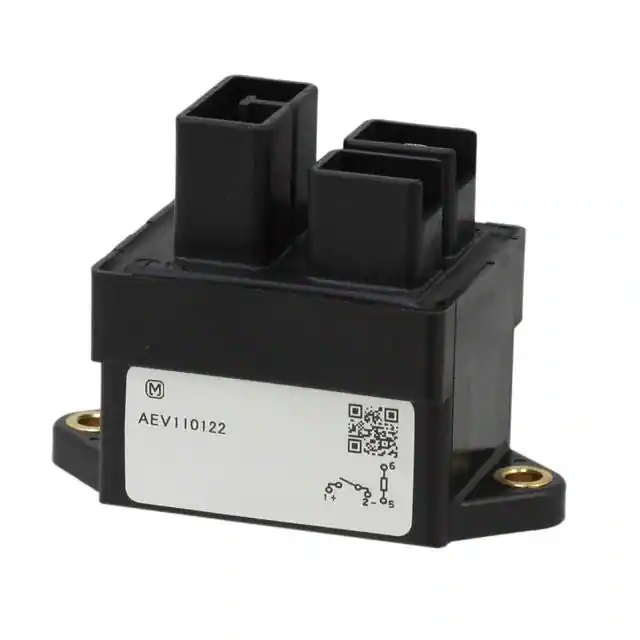

AEV110122RELAY AUTOMOTIVE SPST 10A 12V |
1,675 |
|
Datasheet |
AEV | Bulk | Last Time Buy | Non Latching | 103 mA | 12VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 80°C |
|
YASS112DM00L01RELAY 12V, 0.6W 20A |
50,000 |
|
Datasheet |
- | Box | Active | - | 50 mA | 12VDC | SPST-NO (1 Form A) | 20 A | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
FR401-1HD051Automotive Relay |
1,500 |
|
Datasheet |
FR401 | Tape & Box (TB) | Active | Non Latching | 72 A | 5VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
FR401-1HD121Automotive Relay |
1,500 |
|
Datasheet |
FR401 | Tape & Box (TB) | Active | Non Latching | 30 A | 12VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
FR401-1HD061Automotive Relay |
1,500 |
|
Datasheet |
FR401 | Tape & Box (TB) | Active | Non Latching | 60 A | 6VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
FR401-1HD241Automotive Relay |
1,500 |
|
Datasheet |
FR401 | Tape & Box (TB) | Active | Non Latching | 15 A | 24VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
FR402-1HD061Automotive Relay |
1,500 |
|
Datasheet |
FR402 | Tape & Box (TB) | Active | Non Latching | 60 A | 6VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
FR402-1HD051Automotive Relay |
1,500 |
|
Datasheet |
FR402 | Tape & Box (TB) | Active | Non Latching | 72 A | 5VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
FR402-1HD121Automotive Relay |
1,500 |
|
Datasheet |
FR402 | Tape & Box (TB) | Active | Non Latching | 30 A | 12VDC | SPST-NO (1 Form A) | 30 A | - | - | - | - | 10 ms | Diode | Surface Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
BU5083WRelay 40/60 Amp, 12 VDC, SPDT, R |
2,000 |
|
- |
- | Tape & Box (TB) | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | 12VDC - Nom | 7.8 VDC | 1.8 VDC | - | - | Resistor | Socketable | Quick Connect - 0.250" (6.3mm) | -25°C ~ 125°C |
|
|
BU5083Relay 40/60 Amp, 12 VDC, SPDT, R |
2,000 |
|
- |
- | Tape & Box (TB) | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | 12VDC - Nom | 7.8 VDC | 1.8 VDC | - | - | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -25°C ~ 125°C |
|
|
BU5084WRelay 40/60 Amp, 12 VDC, SPDT, R |
2,000 |
|
- |
- | Tape & Box (TB) | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | 12VDC - Nom | 7.8 VDC | 1.8 VDC | - | - | Resistor | Socketable | Quick Connect - 0.250" (6.3mm) | -25°C ~ 125°C |
|
|
BU5084Relay 40/60 Amp, 12 VDC, SPDT, R |
2,000 |
|
- |
- | Tape & Box (TB) | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | 12VDC - Nom | 7.8 VDC | 1.8 VDC | - | - | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -25°C ~ 125°C |
|
|
BU5084V24Relay 40/60 Amp 24 VDC, SPDT, Re |
500 |
|
- |
- | Tape & Box (TB) | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | - | 24VDC - Nom | 19.2 VDC | 8 VDC | - | - | MINI-ISO, Resistor | Socketable | Quick Connect - 0.250" (6.3mm) | -25°C ~ 125°C |
|
|
5-1393302-8Power/Signal Relay, 1 Form C, SP |
746 |
|
Datasheet |
F4 | Tray | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1393277-6RELAY AUTOMOTIVE SPDT 40A 12V |
3,881 |
|
Datasheet |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
