Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXE160ARA221MJ80GCAP ALUM POLY 220UF 20% 16V SMD Chemi-Con |
3,802 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

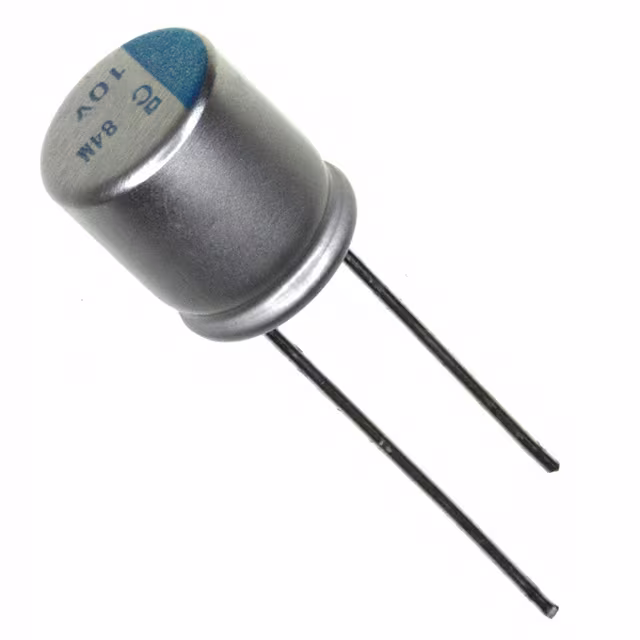

APSC100ELL681MJB5SCAP ALUM POLY 680UF 20% 10V TH Chemi-Con |
4,783 |
|
Datasheet |
NPCAP™-PSC | Bulk | Active | Polymer | 680 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
APSK2R5ELL561ME08SCAP ALUM POLY 560UF 20% 2.5V TH Chemi-Con |
1,933 |
|
Datasheet |
NPCAP™-PSK | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.35 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
APSG160ELL151MF05SCAP ALUM POLY 150UF 20% 16V TH Chemi-Con |
4,693 |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 20mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
APSF2R5ELL561MF08SCAP ALUM POLY 560UF 20% 2.5V TH Chemi-Con |
1,327 |
|
Datasheet |
NPCAP™-PSF | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 5mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 590 mA @ 120 Hz | 5.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

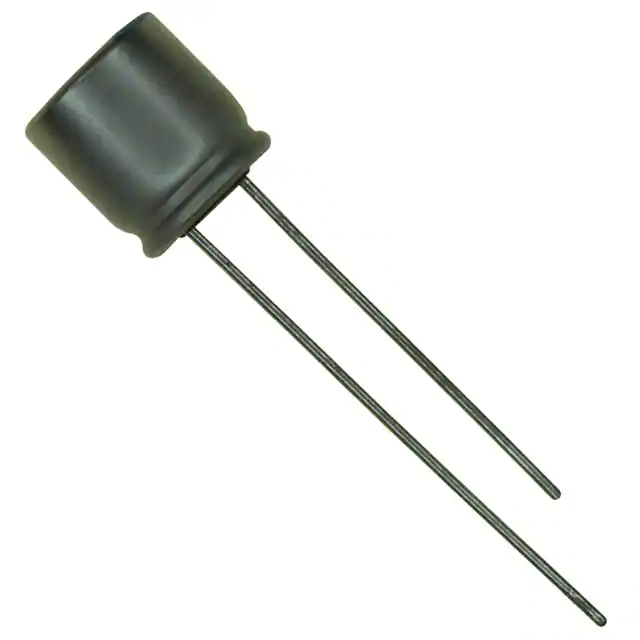

APSC6R3ELL561MH08SCAP ALUM POLY 560UF 20% 6.3V TH Chemi-Con |
4,786 |
|
Datasheet |
NPCAP™-PSC | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
APXS100ARA330ME61GCAP ALUM POLY 33UF 20% 10V SMD Chemi-Con |
1,635 |
|
Datasheet |
NPCAP™-PXS | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 10 V | 70mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APSF160ELL331MH08SCAP ALUM POLY 330UF 20% 16V TH Chemi-Con |
4,898 |
|
Datasheet |
NPCAP™-PSF | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 13mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 470 mA @ 120 Hz | 4.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
HHXD160ARA471MJA0GCAP ALUMHYB 470UF 20% 16V SMD Chemi-Con |
4,706 |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 16 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 338 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXE4R0ARA331MF61GCAP ALUM POLY 330UF 20% 4V SMD Chemi-Con |
2,386 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
