Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APSK6R3ELL271ME08SCAP ALUM POLY 270UF 20% 6.3V TH Chemi-Con |
117 |
|
Datasheet |
NPCAP™-PSK | Bulk | Active | Polymer | 270 µF | ±20% | 6.3 V | 10mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
APSK4R0ELL331ME08SCAP ALUM POLY 330UF 20% 4V TH Chemi-Con |
4,441 |
|
Datasheet |
NPCAP™-PSK | Bulk | Active | Polymer | 330 µF | ±20% | 4 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 405 mA @ 120 Hz | 4.05 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXJ2R5ARA122MFA0GCAP ALUM POLY 1200UF 20% 2.5V Chemi-Con |
435 |
|
Datasheet |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXN160ARA151MH70GCAP ALUM POLY 150UF 20% 16V SMD Chemi-Con |
647 |
|
Datasheet |
NPCAP™-PXN | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSA6R3ELL391MHB5SCAP ALUM POLY 390UF 20% 6.3V TH Chemi-Con |
709 |
|
Datasheet |
NPCAP™-PSA | Bulk | Active | Polymer | 390 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.08 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXF4R0ARA331MF61GCAP ALUM POLY 330UF 20% 4V SMD Chemi-Con |
1,774 |
|
Datasheet |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APSK2R5ELL471ME08SCAP ALUM POLY 470UF 20% 2.5V TH Chemi-Con |
1,000 |
|
Datasheet |
NPCAP™-PSK | Bulk | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.35 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|

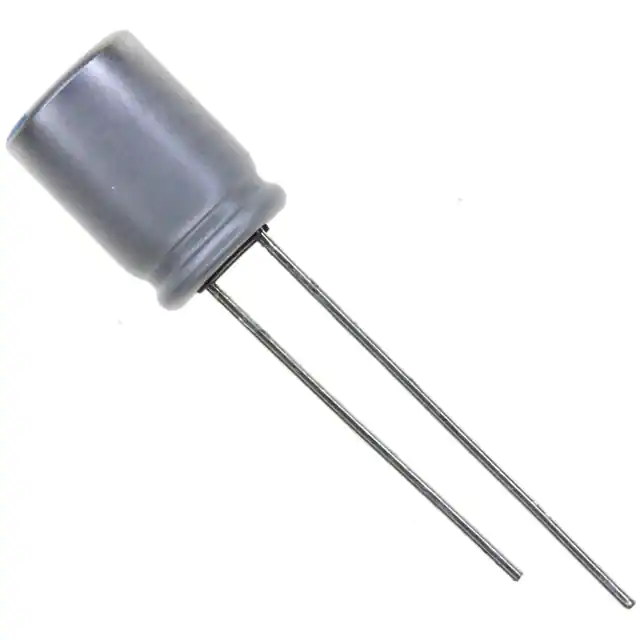

APSC160ELL271MHB5SCAP ALUM POLY 270UF 20% 16V TH Chemi-Con |
1,625 |
|
Datasheet |
NPCAP™-PSC | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.08 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXE160ARA330ME61GCAP ALUM POLY 33UF 20% 16V SMD Chemi-Con |
1,002 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.07 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APXE4R0ARA391MF80GCAP ALUM POLY 390UF 20% 4V SMD Chemi-Con |
1,127 |
|
Datasheet |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.47 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
