AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQM200PS24AC/DC DESKTOP ADAPTER 24V 199W XP Power |
4,728 |
|
Datasheet |
AQM200 (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 8.3A | 199 W | - | - | Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Power DIN, 4 Pin | 47" (1.20m) | IEC 320-C14 | IP22 | 6.56" L x 2.13" W x 1.30" H (166.6mm x 54.1mm x 33.0mm) | CB, CCC, CE, CSA, TUV, UKCA, UL |
|
AQM300PS24C2AC/DC DESKTOP ADAPTER 24V 300W XP Power |
1,845 |
|
Datasheet |
AQM300 (300W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 12.5A | 300 W | - | - | Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Rectangular, 6 Position | 39" (1.00m) | IEC 320-C18 | IP22 | 7.20" L x 3.35" W x 1.38" H (183.0mm x 85.0mm x 35.0mm) | CB, CE, CSA, TUV, UKCA, UL |
|
VEL12US120-EU-JAAC/DC WALL MOUNT ADAPTER 12V 12W XP Power |
1,638 |
|
Datasheet |
VEL12 (12W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 2.99" L x 1.16" W x 2.27" H (76.0mm x 29.5mm x 57.6mm) | CB |
|

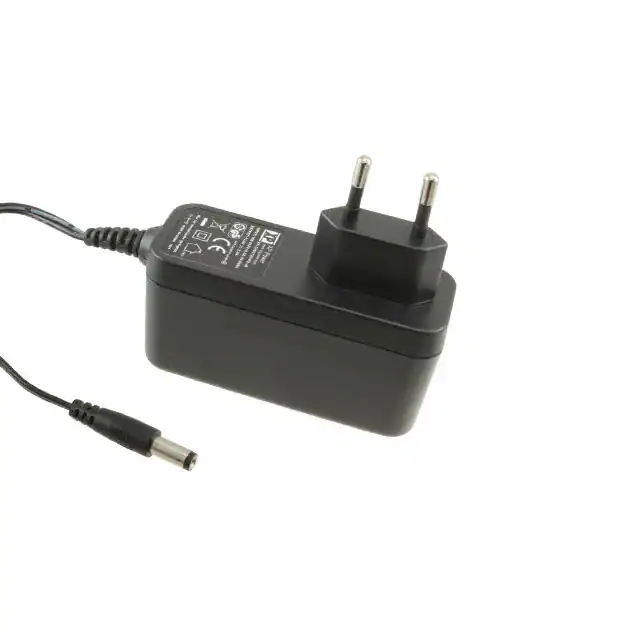

VEL24US120-EU-JAAC/DC WALL MOUNT ADAPTER 12V 24W XP Power |
1,177 |
|
Datasheet |
VEL24 (24W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | CB, TUV, UL |
|

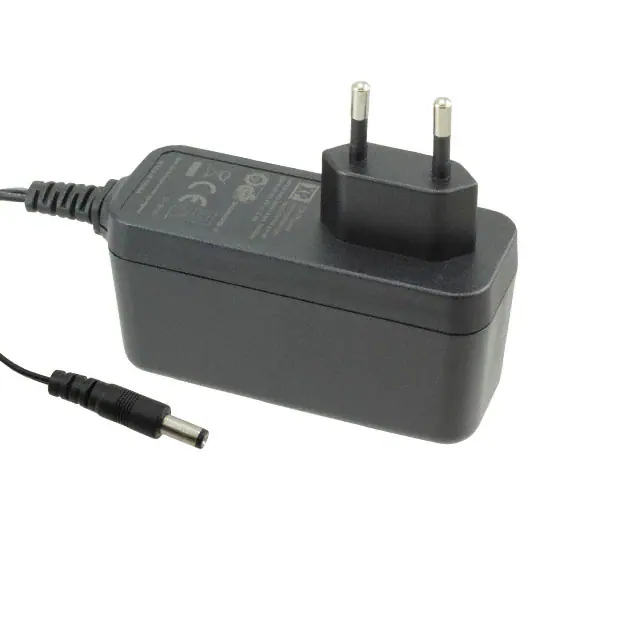

VEL36US240-EU-JAAC/DC WALL MOUNT ADAPTER 24V 36W XP Power |
3,251 |
|
Datasheet |
VEL36 (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.70" L x 1.38" W x 1.83" H (94.0mm x 35.0mm x 46.6mm) | CB, CCC |
|
AMF36US30AC/DC WALL MOUNT ADAPTER 30V 36W XP Power |
3,963 |
|
Datasheet |
AMF36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 30V | 1.2A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm | 59" (1.50m) | Multi-Blade (Sold Separately) | IP22 | 3.56" L x 1.31" W x 2.30" H (90.4mm x 33.3mm x 58.4mm) | CB, CCC, CE, CSA, UKCA, UL |
|
|

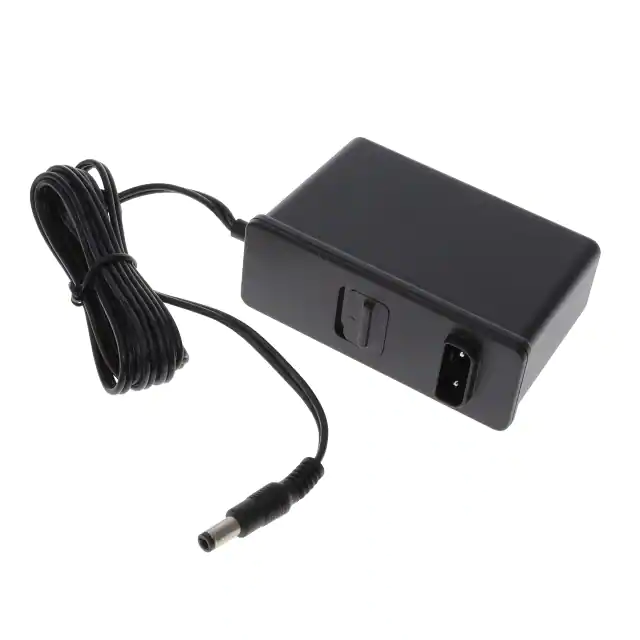

AMF36US12AC/DC WALL MOUNT ADAPTER 12V 36W XP Power |
3,161 |
|
Datasheet |
AMF36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 3A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm | 59" (1.50m) | Multi-Blade (Sold Separately) | IP22 | 3.56" L x 1.31" W x 2.30" H (90.4mm x 33.3mm x 58.4mm) | CB, CCC, CE, CSA, UKCA, UL |
|
AKM90PS12AC/DC DESKTOP ADAPTER 12V 84W XP Power |
1,258 |
|
Datasheet |
AKM90 (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7A | 84 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 5.76" L x 2.36" W x 1.45" H (146.3mm x 59.9mm x 36.8mm) | CB, CCC, CE, CSA, TUV, UL |
|
|
AKM90PS24AC/DC DESKTOP ADAPTER 24V 90W XP Power |
3,556 |
|
Datasheet |
AKM90 (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 5.76" L x 2.36" W x 1.45" H (146.3mm x 59.9mm x 36.8mm) | CB, CCC, CE, CSA, TUV, UL |
|
AQM250PS24-C2AC/DC DESKTOP ADAPTER 24V 250W XP Power |
4,374 |
|
Datasheet |
AQM250 (250W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 10.4A | 250 W | - | - | Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Rectangular, 6 Position | 47" (1.20m) | IEC 320-C18 | IP22 | 6.80" L x 2.64" W x 1.26" H (172.7mm x 67.1mm x 32.0mm) | CB, CE, CSA, TUV, UKCA, UL |
