AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

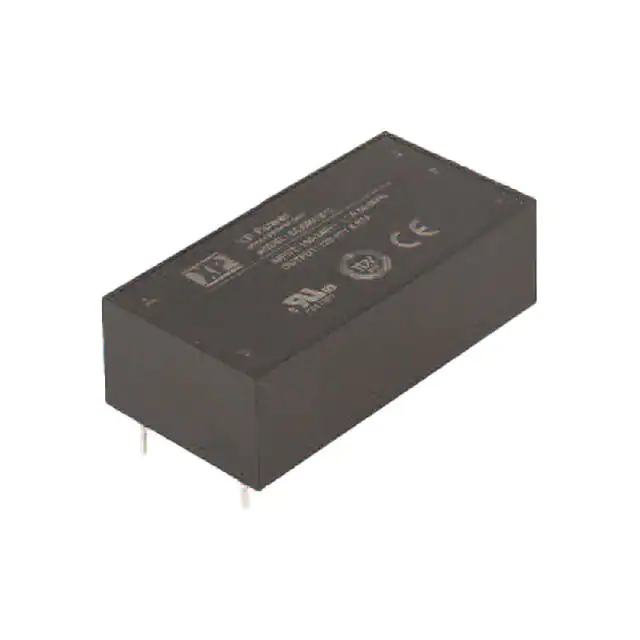

ECE80US24-SAC/DC CONVERTER 24V 80W XP Power |
3,939 |
|
Datasheet |
ECE80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 80W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.45" L x 1.87" W x 1.12" H (113.0mm x 47.5mm x 28.5mm) |
|
ECM100US15AC/DC CONVERTER 15V 100W XP Power |
4,855 |
|
Datasheet |
ECM (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 6.6 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
CCP550PS15-AACDC 550W OPEN FRAME XP Power |
4,873 |
|
Datasheet |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 36.63 A | - | - | - | - | - | 300W (549W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
|
|
CCP550PS36-AACDC 550W OPEN FRAME XP Power |
4,328 |
|
Datasheet |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 15.27 A | - | - | - | - | - | 300W (550W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
|
|
CCP550PS48-AACDC 550W OPEN FRAME XP Power |
4,002 |
|
Datasheet |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 11.45 A | - | - | - | - | - | 300W (550W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
|
CCM250PS36AC/DC CONVERTER 36V 248W XP Power |
3,014 |
|
Datasheet |
CCM (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 36V | - | - | - | - | - | 6.9 A | - | - | - | - | - | 248W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm) |
|
CCH400PS12AC/DC CONVERTER 12V 411W XP Power |
1,009 |
|
Datasheet |
CCH400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 34 A | - | - | - | - | - | 411W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|
|
HPF3K0PS48AC/DC 3KW PROGRAMMABLE POWER SUP XP Power |
3,793 |
|
Datasheet |
HPF3K0 (3kW) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 3000W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.00" L x 7.00" W x 2.50" H (283.5mm x 175.5mm x 50.0mm) |
|
|
HPF3K0PS36AC/DC 3KW PROGRAMMABLE POWER SUP XP Power |
1,988 |
|
Datasheet |
HPF3K0 (3kW) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 83.3 A | - | - | - | - | - | 3000W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.00" L x 7.00" W x 2.50" H (283.5mm x 175.5mm x 50.0mm) |
|
LCW15US15AC/DC CONVERTER 15V 15W XP Power |
1,798 |
|
Datasheet |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) |
