| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|




                 |

                    MVAC250-12FAC/DC CONVERTER 2X12V 170W Murata Power Solutions Inc.  |
                1,662 |

                     |



                       Datasheet  |

                MVAC250 (250W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 12V | 12V | - | - | - | - | 20.8 A | 1 A | - | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |




                 |

                    MVAC250-24FAC/DC CONVERTER 24V 12V 170W Murata Power Solutions Inc.  |
                2,487 |

                     |



                       Datasheet  |

                MVAC250 (250W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 24V | 12V | - | - | - | - | 10.4 A | 1 A | - | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |




                 |

                    MVAC250-48FAC/DC CONVERTER 50V 12V 170W Murata Power Solutions Inc.  |
                2,450 |

                     |



                       Datasheet  |

                MVAC250 (250W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 50V | 12V | - | - | - | - | 5.2 A | 1 A | - | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|


                 |

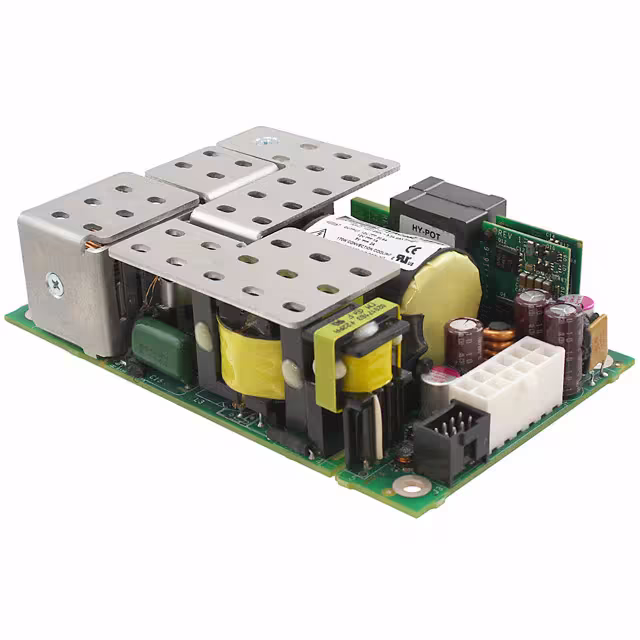

                    MVAC250-12AFDAC/DC CONVERTER 2X12V 5V 170W Murata Power Solutions Inc.  |
                3,788 |

                     |



                       Datasheet  |

                MVAC250 (250W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 12V | 12V | 5V | - | - | - | 20.8 A | 1 A | 2 A | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |




                 |

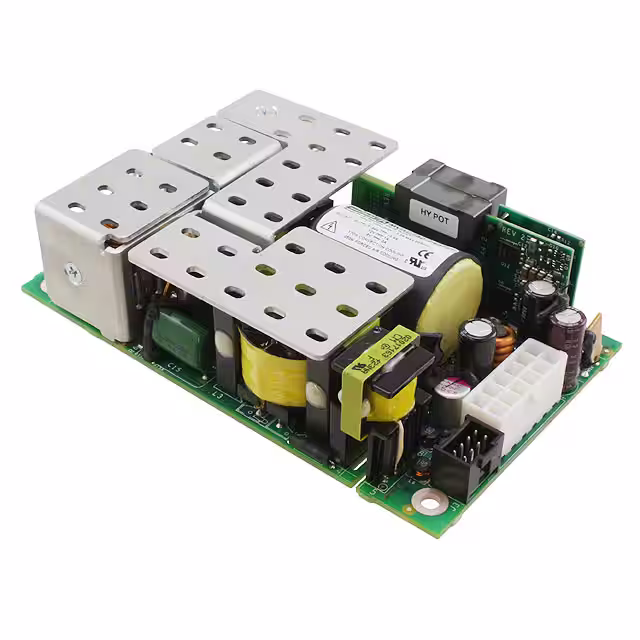

                    MVAC250-24AFDAC/DC CONVERTER 24V 12V 5V 170W Murata Power Solutions Inc.  |
                2,589 |

                     |



                       Datasheet  |

                MVAC250 (250W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 24V | 12V | 5V | - | - | - | 10.4 A | 1 A | 2 A | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |




                 |

                    MVAC250-48AFDAC/DC CONVERTER 50V 12V 5V 170W Murata Power Solutions Inc.  |
                4,583 |

                     |



                       Datasheet  |

                MVAC250 (250W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 50V | 12V | 5V | - | - | - | 5.2 A | 1 A | 2 A | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|


                 |

                    MVAD065-12AC/DC CONVERTER 12V 60W Murata Power Solutions Inc.  |
                4,696 |

                     |


                     -  |

                MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) |
|


                 |

                    MVAD065-24AC/DC CONVERTER 24V 65W Murata Power Solutions Inc.  |
                1,919 |

                     |


                     -  |

                MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) |
|


                 |

                    MVAD065-48AC/DC CONVERTER 48V 65W Murata Power Solutions Inc.  |
                2,510 |

                     |


                     -  |

                MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 840 mA | - | - | - | - | - | 65W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) |




                 |

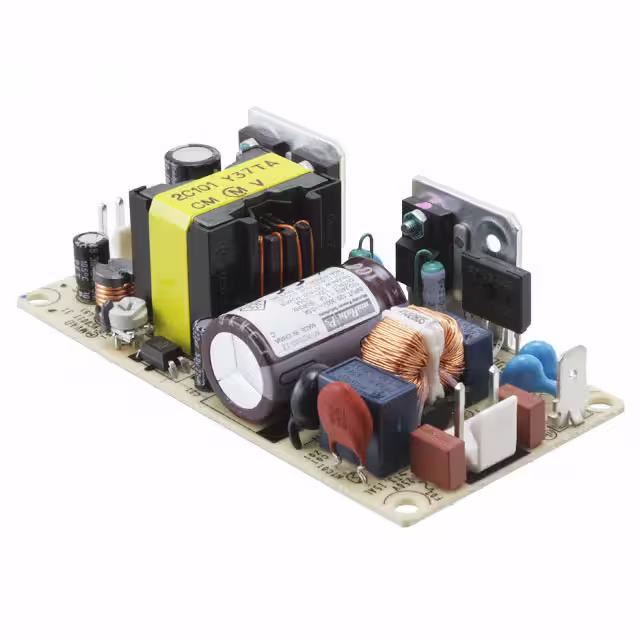

                    MVAD040-12AC/DC CONVERTER 12V 40W Murata Power Solutions Inc.  |
                3,415 |

                     |


                     -  |

                MVAD040 (40W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 3 kV | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.1mm) |
